Gem News International Gems & Gemology, Summer 2013, Vol. 49, No. 2

Ancient Tourmaline and Beryl from Afghanistan

Jaroslav Hyršl, Prague, Czech Republic

151441
This 9.52 ct pink tourmaline is part of an extensive private collection of ornaments claimed to be from ancient Afghanistan. Photo by Jaroslav Hyršl.
A large private collection of beads and carvings from antique excavations, assembled in the 1970s by a collector in Afghanistan, was recently examined. The pieces were claimed to be found near the ancient city of Bactra (modern-day Balkh), 300 km northwest of Kabul near the border with Uzbekistan. Bactra was a center of the Bactrian civilization, which flourished from 2500 to 1500 BC. The collection contains several thousand drilled beads, mostly agate, carnelian, and rare blue chalcedony. The next most abundant materials are turquoise—some as small as 1 mm in diameter—and lapis lazuli. Less common are garnet (two types of almandine), rock crystal, amethyst, serpentinite, and steatite, as well as organic materials identified as amber, pearl, and mother-of-pearl. Other very interesting finds are treated rock crystal and milky quartz, both containing blue glass spots on their surfaces, similar to medieval sapphire imitations (Fall 2001 GNI, pp. 243–245).

The two most interesting pieces, a pink bird (above) and a very pale blue bead (below), were studied in detail. The bird had a light green bottom section, measured 13.9 × 13.6 × 7.6 mm, and weighed 9.52 ct, with a refractive index close to 1.63. It was strongly pleochroic (pink and colorless), and it was uniaxial negative in a conoscope. In both short- and long-wave UV light the center was inert, but a thin triangular zone of light blue fluorescence was visible near the surface. These tests confirmed the stone’s identification as tourmaline. It was originally a “watermelon” tourmaline, pink with a green rim, but only a small part of the green rim had been preserved.

151438

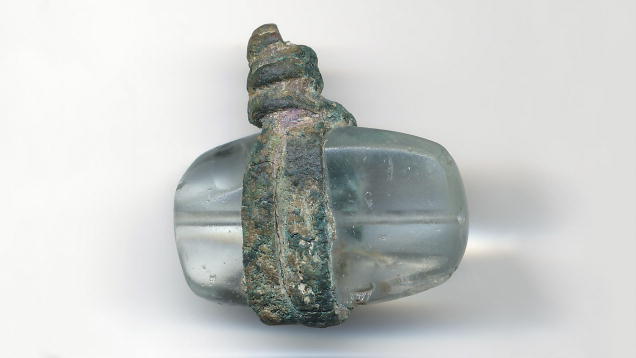

This aquamarine bead, reported to be from Afghanistan, weighs 20.28 ct and is likely one of the oldest of its kind. Photo by Jaroslav Hyršl.
The pale blue bead was set in a heavily corroded metal, probably bronze. The entire piece measured 20.7 × 12.3 × 6.7 mm and weighed 20.28 ct, with an RI close to 1.59. The stone was weakly pleochroic (very light blue and colorless), inert in UV light, and uniaxial negative in a conoscope. These results indicated a very pale aquamarine. The identification of both beads was confirmed by their Raman patterns, collected by A. Gilg (Technical University of Munich).

Both beads are possibly among the oldest of their kind. Large and historically significant rubellites have been reported from the 14th and 16th centuries, and a single beryl bead from Nubia has been dated back to Predynastic time (before 3200 BC), but few details are known. The first beryl locality of significance was reportedly the Egyptian emerald deposit exploited as early as the Ptolemaic era (after 332 BC).

Both tourmaline and aquamarine are typical pegmatite minerals. Gem-bearing pegmatites have been mined since the 1970s in the Nuristan province of eastern Afghanistan and northern Pakistan—the possible origin of both beads.
