Provenance Discrimination of Freshwater Pearls by LA-ICP-MS and Linear Discriminant Analysis (LDA)
ABSTRACT
This study investigates trace-element concentrations of 225 freshwater pearl samples using laser ablation–inductively coupled plasma–mass spectrometry (LA-ICP-MS) and subsequent statistical analysis using linear discriminant analysis (LDA). The samples consisted of three types: non-bead-cultured pearls (NBC) grown in China, natural pearls found in the United States, and cultured pearls (bead and non-bead) grown in the United States. By capturing variations in trace-element concentrations simultaneously through multivariate analysis, these supplementary techniques assist in identifying freshwater pearl origins with a greater degree of confidence.
INTRODUCTION
With more than 300 native mussel species, the rivers and lakes of the United States have produced countless prized natural freshwater pearls over the centuries (Haag, 2012). America’s rich freshwater pearling and shelling heritage has been recorded in the literature over the years. Natural pearls discovered in these waters have exhibited a wide range of shapes, colors, and surface characteristics (Kunz and Stevenson, 1908; Sweaney and Latendresse, 1984; Strack, 2006; Haag, 2012; Hsu et al., 2016). Overharvesting in the past by the shelling industry, dam construction, water pollution, siltation, and the introduction of non-native mussel species have damaged the habitat and shortened the lifespans of the indigenous mussels. Approximately 70% of the mussels are extinct, endangered, or of special concern (U.S. Fish & Wildlife Service, 2018). Wild mussels are still harvested under license in the states of Kentucky, Alabama, and Tennessee, and the shelling industry is heavily regulated (Watters et al., 2009; Hsu et al., 2016). Nevertheless, pearl production is currently very limited in the United States.
By contrast, the dominant source of freshwater cultured pearls—bead cultured and non-bead cultured (NBC)—is China, which developed NBC pearl cultivation during the 1990s in order to satisfy global demand for high-quality, affordable pearls. There are thousands of freshwater pearling farms in China; Zhuji, in Zhejiang Province, accounts for 85% of the total production (China Gems, 2019). The rest of the culturing operations are mainly situated in the southeastern part of China. Hyriopsis species mollusks are extensively used to culture Chinese freshwater pearls. The gemological characteristics of these pearls, as well as the culturing techniques applied, have been reported on previously (Scarratt et al., 2000; Akamatsu et al., 2001; Hua and Gu, 2002; Fiske and Shepherd, 2007). Freshwater NBC pearls are intentionally cultured without a solid shell bead nucleus, using just a piece of mantle tissue (epithelial cells) from donor mussels transplanted into a living host mussel. The grafted tissue later develops into a pearl sac and secretes calcium carbonate (nacre) as well as organic matter and water to form a pearl.
Real-time microradiography (RTX) and X-ray computed microtomography (μ-CT) are efficient techniques used by gemological laboratories to analyze a pearl’s internal structure and determine whether it is natural or cultured (Karampelas et al., 2010, 2017; Krzemnicki et al., 2010). Most freshwater NBC pearls have distinct internal structures that can easily be identified by microradiography: twisted voids and elongated linear features in their center (Scarratt et al., 2000; Sturman, 2009). Nevertheless, some NBC pearls are challenging to accurately identify, as they contain small central growth features similar to those in some natural pearls. The identification can be further complicated if any drill holes are present or the pearls are mounted in jewelry, as these may cause the masking or removal of critical evidence.
Freshwater mussels are sedentary filter-feeders, and trace-element variability in such an organism can provide revealing information about their growth environment (Grabarkiewicz and Davis, 2008). The purpose of this study is to perform a preliminary investigation of the trace-element concentrations of natural pearls from North America and NBC pearls from China using laser ablation–inductively coupled plasma–mass spectrometry (LA-ICP-MS) and linear discriminant analysis (LDA) to separate these pearls by geographic origin, growth environment conditions, and mollusk species. LA-ICP-MS has become an important tool for gemstone identification due to its high spatial resolution, rapid and direct chemical analysis, and ultra-high sensitivity when measuring a wide range of elements (Abduriyim and Kitawaki, 2006). LDA is a type of multivariate analysis that can distinguish one class of object from another by applying weighted coefficients of multiple parameters—such as trace elements—to multiple functions representing each group such as USA-NAT, USA-CUL, and CH-NBC, potentially enhancing the benefits of the LA-ICP-MS analysis. This technique has already been applied to determine the country of origin of various gemstones (Blodgett and Shen, 2011; Pornwilard et al., 2011; Shen et al., 2013; Giuliani et al., 2014; Luo et al., 2015).
To augment the study, we also included a unique group of American freshwater cultured pearls. While not a major source for the pearl market, these serve as interesting samples since they were grown in very specific conditions in Kentucky Lake in the state of Tennessee. Washboard (Megalonaias nervosa) is a major mussel species used to culture American pearls. The culturing period takes three to five years, and the pearls were typically harvested in the autumn months of the year (Hsu et al., 2017). Thus their chemical compositions were expected to be more homogenous than those of the other sample bases.
MATERIALS AND METHODS

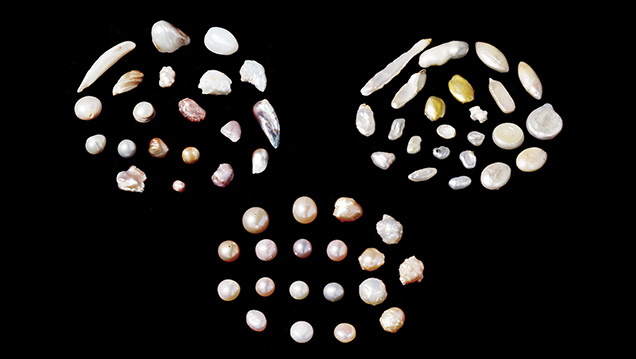

For LA-ICP-MS analysis, we selected 74 American natural (designated here as USA-NAT), 75 American cultured (USA-CUL), and 76 Chinese NBC freshwater pearls, all of various shapes, colors, and sizes (figure 1). Each loose pearl was analyzed in two or three spots (table 1). The variability of trace-element concentration in relation to the pearls’ color was not considered in this study. All the American pearls were purchased from the American Pearl Company, Inc. (Nashville, Tennessee) and were claimed to be known samples from their collections (Hsu et al., 2017). These cultured pearls were reportedly grown in Kentucky Lake and harvested during different years. For the natural pearls reportedly collected from North American lakes and rivers, however, there is no exact record of the location, time, or mollusk species in which the pearls were formed. The Chinese pearls, mainly harvested from Hyriopsis mollusks, belong to the GIA research collection and were purchased from various sources over many years.
To confirm each pearl’s identity before the chemical analysis, we examined their internal structures using RTX. The natural pearls showed a variety of structures that consisted mainly of concentric growth arcs following the pearl shape, with and without a dark organic spot in the center. Nine samples showed a questionable void structure that could be considered indicative of NBC pearl formation, though they resembled the other pearls in the group and most experienced pearl testers would consider their internal structures natural rather than NBC. The American NBC pearls revealed distinctive structures expected for this type of pearl. The majority exhibited relatively large void structures, some of which also contained small granular features. Some of the void features tended to be long and thin, appearing “linear” in form. The bead-cultured pearls showed bead nuclei with various shapes that related directly to their external appearance. The majority of the Chinese NBC samples had characteristic “twisted” void-like or elongated linear structures typical of freshwater NBC pearls. However, seven of them did not show any clear indication of a cultured origin because the evidence was entirely removed by the drilling process, leaving only the outer growth arcs, which are less diagnostic.
A MatriX-FocalSpot Verifier PF-100 X-ray fluorescence unit (100 kV and 3.2 mA excitation) equipped with a Canon EOS REBEL T4i DSLR camera (five-second exposure, F5.0, ISO 12800) was used to confirm the pearls’ growth environment (either saltwater or freshwater) prior to advanced analysis. Most of the samples tested in the X-ray fluorescence unit showed moderate to strong greenish yellow fluorescence when exposed to X-rays due to the presence of trace amounts of manganese (Mn) (Hänni et al., 2005; Kessrapong et al., 2017), confirming their freshwater origin. Moreover, some freshwater pearls also exhibited an orangy reaction, which is probably related to Mn2+ in calcite composition and has been reported in freshwater pearls (Habermann et al., 2001; Dumańska-Słowik et al., 2008).
LA-ICP-MS. A Thermo Fisher Scientific iCAP Qc ICP-MS, coupled with a New Wave Research UP-213 laser ablation unit with a frequency-quintupled Nd:YAG laser (213 nm wavelength) running at 4 ns pulse width, was used for this study in GIA’s Carlsbad laboratory. Ablation was achieved using a 55 µm diameter laser spot size, a fluence (energy density) of approximately 10–12 J/cm2, and a 15 Hz repetition rate. 43Ca was used as an internal standard, with a value of 400,400 ppmw calculated and rounded from pure calcium carbonate (CaCO3). U.S. Geological Survey (USGS) pressed powder pellet carbonate standards (microanalytical reference materials MACS-1 and MACS-3) were used as matrix-matched external standards to minimize errors caused by matrix effects (Jochum et al., 2012). Argon was used as nebulizer gas (0.73 L/min), auxiliary gas (0.8 L/min), and cooling gas (14 L/min). Helium, used as part of the carrier gas, had a flow rate of 0.8 L/min. Argon and helium gas flow, torch position, sampling depth, and lens voltage were optimized for maximum sensitivity (counts per concentration) and low oxide production rates (232Th16O/232Th <1%). Ablated material was then vaporized, atomized, and ionized by a plasma powered at 1550 W. Twenty-three different isotopes of interest were selected (table 2). When ablating a calcium carbonate matrix, interferences in the forms of molecules and ions with multiple charges produced by matrix compounds and a gas blank may produce inaccurate results (Jochum et al., 2012). Table 2 shows major interferences of each isotope related to matrix and gas blank and indicates the minimum required mass resolving power (MRP) necessary for a particular mass being analyzed to make a separation from the corresponding interferences (table 2, column 6). The unit we used has two resolution modes: normal and high. Normal-resolution mode has a peak width of 0.7 atomic mass units (amu), which results in a 57 MRP at atomic mass 40 and a 429 MRP at atomic mass 300. High-resolution mode has a peak width of 0.3 amu, yielding a 133 MRP at atomic mass 40 and a 1000 MRP at atomic mass 300. If a required MRP for the separation of isotopes (table 2, column 6) is smaller than the MRP applied by LA-ICP-MS (table 2, column 7), the interferences related to the isotopes can be resolved. It is obvious that the MRP required for the separation of elements cannot be achieved with either resolution mode for almost all selected isotopes except 60Ni. As a result, the analysis of isotopes with high interference signals (table 2, column 5) as discriminators must be carefully avoided. To optimize the signals, measurements were performed in high-resolution mode for 43Ca and with normal resolution for other isotopes.
Data acquisition was performed in time-resolved mode. Dwell time for each isotope was 0.01 second. The gas background was measured for 20 seconds, while the dwell time of each laser spot was 40 seconds. To eliminate surface contamination, only the second half (20-second ablation time) of the laser profile was used in the calculations. Data was processed by Qtegra software. The LA-ICP-MS method was created to ensure the reproducibility of measurements and in order to be applicable for pearl identification submissions received by the laboratory. LA-ICP-MS is a quasi-nondestructive technique where the resulting tiny laser ablation spots are rarely visible without magnification. Further consideration is given to the position of analysis, which is usually carried out in an inconspicuous place that does not affect the visual appearance of the pearls (near the drill hole, the tapered end of a drop, or the flat base of a button). The round crater (laser spot) measures approximately 55 µm in diameter. The amount of nacre ablated from the two or three laser spots applied to each pearl is minimal and does not result in any noticeable weight loss.
LDA Methods. There are many statistical methods available that can model data in order to make predictions about unknown samples. Choosing the appropriate model depends on the type of data sought, whether or not information from training classes1 is available, and the data’s distribution (see box A). In this study, LDA was appropriate for origin determination of the three freshwater pearl types because the densities of the sample clusters with respect to various element concentrations have an approximately normal distribution. Cross-validation testing involved removing each sample from the aforementioned classes, training the LDA on the remaining samples, and then applying the LDA prediction on the removed sample. This robustness test yielded prediction rates only slightly lower than focusing the LDA with all available samples and then predicting to which class those same samples belong, indicating that the LDA method had sufficient training samples to maintain high prediction rates if additional pearls with the same origins were added. Pairwise analysis was applied, similar to the study by Luo et al. (2015), because otherwise the discriminant functions will change as more classes are added. Elements useful for the separation of two classes may not be useful for a third or fourth class. The authors introduced a decision tree to allow for the additional sophistication of classifying unknown samples as “undetermined” if there are contradictory results between pairwise tests or if unknown samples fall far from the clusters of known samples analyzed. However, no unknown samples were run in this experiment. In developing the LDA model, we collected multiple spots of chemical analysis for each pearl. Each spot was treated as a separate sample unit. The number of pearls and associated spots for each type of pearl are shown in table 1.
Box A: Choosing an Appropriate Statistical Model for Predicting Unknown Samples |
|
Selecting an appropriate prediction model may depend on many factors, such as the data type, the availability of training data, and the data distribution. For some data sets, no prior knowledge is available about the possible classes you wish to predict. When no training classes are available, cluster analysis which uses unsupervised learning can be applied (Hastie et al. 2008). Data can be continuous—as is the case for trace elements—or discrete, such as yes or no responses in a survey. Logistic regression is a good statistical tool for analyzing discrete data. For continuous data with known classes, there are a number of analytical tools available. LDA is a common statistical model and closely related to principle component analysis (PCA) and factor analysis. All look for linear combinations of variables that best explain the data (Martinez and Kak, 2001). LDA specifically models the differences between the classes while PCA does not; PCA is a better choice for distinguishing between classes when the class means are similar and there are large differences in variance. Quadratic discriminate analysis (QDA) can be used to draw nonlinear boundaries between classes, but like any other nonlinear fit, the data density needs to be high enough to prevent overtuning the model to a data scattering where no solid relationships really exist. QDA is only viable in situations where the ratio of the sample size to the variable count is large (Hastie et al., 2008). Logistic regression does not have as many assumptions and restrictions as discriminant analysis and therefore tends to be more universal. However, when discriminant analysis’ assumptions are met, the LDA model tends to perform better than logistic regression (Hastie et al., 2008). Regularized discriminant analysis (RDA) is best for sample distributions that are strongly ellipsoidal (Friedman, 1989). |
Pairwise LDA formulas were developed in which two functions are formulated: Each function computes a score for each pearl type. The higher score indicates a sample’s pearl type. When running a pairwise LDA, a cross-validation method is applied to test the robustness of the model, whereby each pearl sample is classified by the functions derived from every other pearl sample. To make a final prediction, we constructed a simple decision tree2 that merged the pairwise results into a single final result. If two out of three pairwise tests yielded the same result, then that “consensus” result became the final prediction. For example, if 1 vs. 2 = 2, and 1 vs. 3 = 1, and 2 vs. 3 = 2, then the predicted result would be “2.” If no pearl types are selected twice, then the prediction becomes a fourth class: “undetermined.” Note that in this study, an “undetermined” result was considered an incorrect prediction.
LA-ICP-MS AND LDA RESULTS
Chemical data recorded for the 22 elements selected are shown in table 3. The three types of freshwater pearls showed similar Ca concentrations. Of the trace elements analyzed, Na, Mn, Sr, and Ba were found to be useful discriminators based on careful examination of data with standard chemistry plots. 23Na+ and 88Sr+ had major interferences that were less than 1% of total counts, while 55Mn+ had major interferences between 1% and 10% of total counts and 137Ba+ had no major interference (see table 2, highlighted gray). Li, Na, Mg, Mn, Sr, and Ba have been proven to be useful discriminators when identifying marine aragonites (otolith) (Veinott and Porter, 2005; Sturgeon et al., 2005; Lara et al., 2008). However, Li and Mg both had interferences greater than 10% of the total counts (see table 2) and thus could not be corrected sufficiently by subtracting only the gas blank. Therefore, they were not used in the method because of the limitations of the instrument.
Seven of the USA-NAT samples contained Mn contents of less than 100 ppmw, which is unusual for freshwater pearls. Mn is generally above 100 ppmw in freshwater pearls and shells, but is low or even absent in saltwater material. The low Mn content of the seven samples suggests that they could be saltwater pearls. To verify the growth environment of these questionable samples, three extra spots were tested on each sample; the results are presented in table 4. All questionable samples contained low Sr (<1100 ppmw), low Na (<2100 ppmw), and high Ba (>30 ppmw), which is the opposite of the trace element results that were documented on known saltwater origin pearls from the Pinctada maxima mollusk (Scarratt et al., 2012; Sturman et al., 2016). A ternary diagram of Ba, Mg, and Mn (figure 2) was used to plot all studied freshwater and known saltwater pearls for better clarification. Moreover, additional groups of South Sea and Tahitian pearls that were analyzed by the same method used for the freshwater pearls were included in the diagram for supporting information. All the questionable samples plotted alongside the freshwater pearls, which showed that the samples likely have a freshwater rather than saltwater origin.
A chemical plotting method was used to plot the chemistry. The nine categories listed in table 5 represent different chemical ranges that were defined according to the concentrations of Sr and Ba. In order to reduce the overlapping areas among the three groups as much as possible, the boundaries of each category were determined based on the analytical data and authors’ experience. This method is modified based on geographic origin plots for sapphires used internally by GIA (A. Palke, pers. comm., 2018). Mn-Na corresponding chemical plots were constructed for each Ba-Sr category (figure 3). These categories showed it was easy to separate the USA-CUL pearls from the USA-NAT and CH-NBC pearls. In the low Ba, low Sr category (figure 3A), all USA-CUL pearls were off the plot, which left only two groups (USA-NAT and CH-NBC). In the high Ba, high Sr category (figure 3B), the majority of USA-CUL pearls were in the plot, while a high proportion of pearls from the other two groups were off the plot. Aside from these results, partial separation may also be made using the high Ba, medium Sr (figure 3H) and medium Ba, medium Sr (figure 3I) categories.
The Mn concentrations were high in all the USA-CUL samples, with none less than 650 ppmw. The USA-CUL samples all had Sr or Ba contents greater than 340 and 80 ppmw, respectively. These samples are easier to identify through the narrower range in trace elements, because they were farmed from a single location and mollusk species. The USA-NAT and CH-NBC both showed many overlapping trace elements, most likely because the natural pearls formed in many mussel species spread across a large geographic footprint in North America. In the case of the Chinese pearls, the samples were obtained from different pearl dealers who no doubt acquired them from different culturing areas, also distributed over a wide geographic area. Nonetheless, they did reveal a degree of separation when specific parameters were applied. Of the samples studied, only the USA-NAT samples (14%) had both Na contents of less than 2000 ppmw and Mn contents of less than 320 ppmw. USA-NAT samples showed Sr concentrations below 230 ppmw (9%) and Mn concentrations below 180 ppmw (10%). Only CH-NBC samples (31%) had Na concentrations over 2300 ppmw. None of the other sample groups showed these concentrations.
In general, the American samples showed Na levels lower than 2000 ppmw (USA-NAT 85% and USA-CUL 73%), while 69% of Chinese samples were higher than this amount. For the USA-CUL samples, 73% showed high Mn (>1000 ppmw) and Ba (>200 ppmw). Conversely, 82% of USA-NAT and 75% of CH-NBC samples showed low Mn (<1500 ppmw) and Ba (<200 ppmw). Sr concentration was high (>400 ppmw) in 88% of the USA-CUL samples, low (<400 ppmw) in 68% of the USA-NAT samples, and medium (300 to 600 ppmw) in 77% of the CH-NBC samples. All the percentages reported are based on the numbers of samples studied, rather than the number of analyzed spots.
The chemical characteristics of the freshwater pearl samples enabled a relatively well-defined separation to be carried out using the LDA application we developed. A combination of the following elements was found to be most useful for the separation of the different groups: 23Na, 39K, 44Ca, 55Mn, 57Fe, and 88Sr. For a pairwise LDA model, two discriminant functions were constructed and predicted two scores, one for each group. In general, the higher score indicated to which group the sample belonged. A model that predicts 100% places all samples correctly into the known groups. For the pair USA-NAT vs. USA-CUL, the (non-cross-validated) discriminant scores are plotted in figure 4A with the overall trend for USA-NAT samples to have higher USA-NAT discriminant scores relative to USA-CUL scores and with USA-CUL samples showing the opposite trend. Although the separation between the two groups looks small, 92.6% of the cross-validated grouped cases were correctly predicted. Thus, the model is a very good predictor, with the cross-validation test confirming the model’s statistical validity. For the USA-CUL vs. CH-NBC and USA-NAT vs. CH-NBC pairs, the cross-validated prediction rates were 87.7% and 87.6%, respectively (figures 4B and 4C). The percentage of all the samples correctly predicted by the final decision tree step into the three known groups was over 85%. There are a number of factors such as varying species, location, and environment that could be contributing to the variance in sample chemistry, making the task of predicting these groups correctly more difficult. Despite such potential sources of variance, the LDA empirically predicts much better than chance. So at least for the samples tested, there are tendencies in chemistry that can be applied broadly to China, for example, that do not apply to the United States. Nevertheless, collections of samples that better represent any important factors contributing to the variance can lead to models that accommodate the influence of those additional factors, thereby improving upon the current prediction rates.
Lastly, the chemical plots comparing Sr and Na contents (figure 5) revealed a large number of USA-NAT and CH-NBC samples that exhibited challenging internal growth structures and were difficult to identify with X-ray techniques, thus separating them from the other sample groups. All the measurement spots of the studied samples are displayed in the plot, and concentrations of Sr and Na of these specific samples are shown in table 6. The LDA method correctly discriminated 60% and 70% of these challenging USA-NAT and CH-NBC samples, respectively (again, see table 6, column 4).
CONCLUSIONS
From the findings of this preliminary study, we propose that the combination of trace-element information provided by LA-ICP-MS and subsequent application of LDA has the potential to classify freshwater pearls from different sources with relatively reliable accuracy. This method can be a useful aid in identifying freshwater pearls exhibiting challenging internal growth structures. The samples studied here were not collected directly from the mollusks (but were supplied by reliable sources), and we cannot pinpoint the exact locations within the sources. The trace-element variations nonetheless corresponded to the geographic location, water environment, and mollusk species in which the pearls formed, and the results confirmed a degree of variation among sources.
To improve the usefulness of this technique to laboratory gemologists, we intend to study additional known samples from various geographic locations so that a large and dependable data set can be developed. The data may be further enhanced by narrowing down the recorded sources, as the results on the group of USA-CUL samples included in this work proves, by collecting pearls directly from specific localities, harvest seasons, and mollusk species, whether they be natural pearls from Tennessee and Colorado in the United States, Scotland, or Germany, or NBC pearls from China, Japan, Thailand, or Vietnam, among other possibilities.
Pearl identification is still carried out primarily by observing and interpreting the structural results obtained from various X-ray techniques, and our method can only be used to support those results. Yet in cases where all the structural evidence has been destroyed by the drilling process or where the structure is so subjective that different opinions exist within the same laboratory, let alone between different laboratories, the combination of LA-ICP-MS and LDA may be the only way to reach a conclusion other than undeterminable. The only other possible aid to identification in the most challenging of cases is DNA testing, and this is another area of ongoing research for GIA and other institutes.
