Gem News International Gems & Gemology, Fall 2015, Vol. 51, No. 3

Rare “Star and Cross” Quartz from Brazil

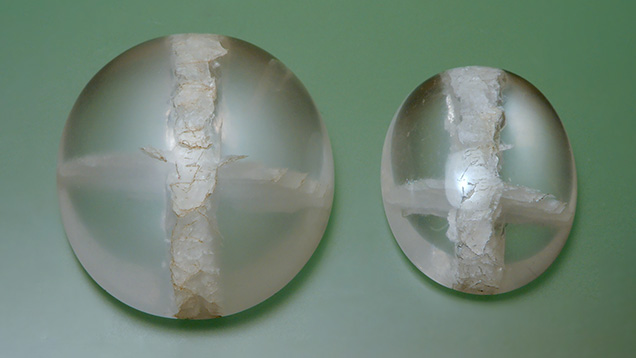

Quartz cabochons with cross-shaped quartz inclusions.
Figure 1. Face-up view of two quartz cabochons from Brazil, weighing 116.95 ct (left) and 44.12 ct (right) with cross-like quartz inclusions. Photo by Jaroslav Hyršl.

The author purchased two very unusual quartz samples (figure 1) in Brazil in 2015. Both were cut as cabochons with a slightly curved bottom; one weighed 116.95 ct (35.0 × 30.3 × 15.6 mm), while the other weighed 44.12 ct (28.3 × 22.3 × 10.0 mm). The larger cabochon was slightly milky, while the smaller one was almost clear. Both showed a strong six-rayed star when illuminated (figure 2). The stars were centered on the top of the cabochons, which indicates that both were cut perpendicular to the c-axis. The most unusual feature was a cross-like inclusion in both stones. It was white and coarse-grained, only slightly translucent. The longer part of both crosses measured about 4 mm wide. The shorter part had a thickness 1.5 to 2 mm and the angle of the intersection was about 85 degrees in both cabochons, which meant that the two specimens were probably cut from the same crystal. Refractive index results and Raman analysis showed the cross to be quartz, rather than a foreign mineral. The origin of the cross inclusions is uncertain, but they are strong evidence of nature’s ability to produce rarities.

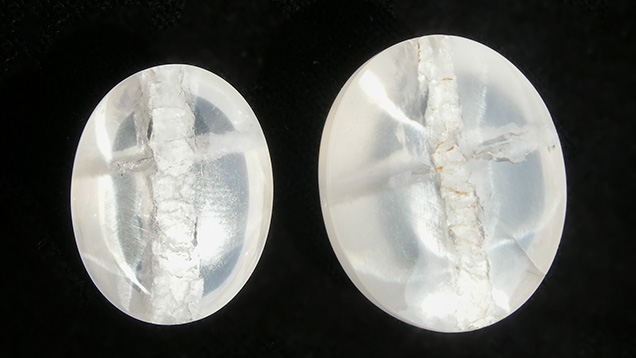

Base view of asterism in quartz.
Figure 2. The stars in the quartz samples, seen from the base, are eye-visible in sunlight. Photo by Jaroslav Hyršl.

Jaroslav Hyršl is a mineralogist and author in Prague.
