Gem News International Gems & Gemology, Fall 2015, Vol. 51, No. 3

A Jadeite Bangle Simulant: Hydrogrossular Garnet


Jadeite jade and hydrogrossular garnet bangles.
Figure 1. The photo on the left shows a jadeite jade bangle. The photo on the right shows two hydrogrossular garnet bangles that were claimed to be jadeite. Photos by Lai Tai-An Gem Lab.

Jadeite, a material significant within Chinese culture, is often submitted to the Lai Tai-An Gem Laboratory for identification.

Historically, the name “jade” has been applied to either nephrite or jadeite. Nephrite has been used for adornment and ornamentation for thousands of years in China, and nephrite objects from many dynasties are found in museums, auctions, and antique shops around the world. While newer to the Chinese market, jadeite jade is becoming increasingly important. Jadeite bangles (figure 1, left) require more rough than cabochons or fashioned stones, resulting in a larger amount of waste. Consequently, the value placed on good-quality pieces is higher, and jadeite bangles with fine textures and brilliant colors continue to set new records in auction houses.

We recently received two similar-looking bangles (figure 1, right) for identification. The client claimed the pieces were jadeite, but we determined them to be hydrogrossular garnet. This jadeite simulant is rarely seen in bangle form; it is more likely encountered as carvings or cabochons. In this particular case, the similarity to jadeite was extremely convincing.

The two translucent, light to strongly saturated green and white hydrogrossular garnet bangles weighed 339.55 ct and 400.03 ct, and measured 75 × 11 mm and 77 × 12 mm, respectively. Both exhibited a spot refractive index of 1.72, specific gravities of 3.42/3.45, inert reaction to both short-wave and long-wave UV, and a light pink reaction through the Chelsea color filter. The absorption spectrum showed a cutoff below 460 nm, and the material exhibited black pepper-like inclusions (figure 2); these characteristics suggest that the color of the garnet is natural.

Black pepper-like inclusions in hydrogrossular garnet bangles.
Figure 2. These hydrogrossular garnet bangles exhibit the black pepper-like inclusions that are sometimes found in this material. Photo by Lai Tai-An Gem Lab; field of view 8.20 mm.

The identification was confirmed by FTIR and Raman analysis. Peaks at 954, 866, 843, 616, 560, 488, and 458 cm–1 in the infrared spectra (figure 3), and peaks at 367, 408, 544, 823, 877, 1489, and 1543 cm–1 (figure 4) in the Raman spectrum are indicative of hydrogrossular garnet. The similarity to jadeite could lead to a costly error, so those in the trade must be aware of such imitations.

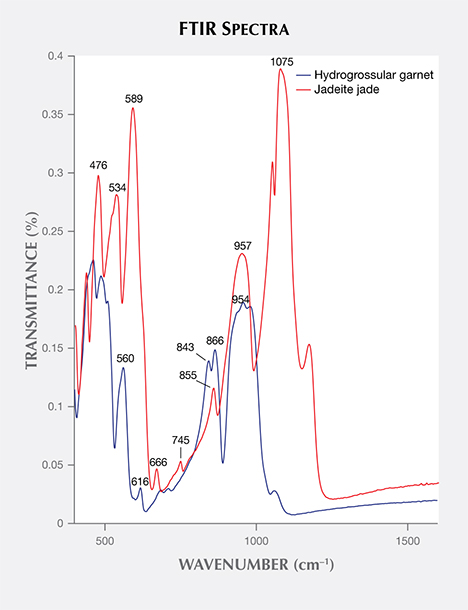

FTIR spectroscopy shows the difference between jadeite and hydrogrossular garnet.
Figure 3. FTIR spectra reveal the difference between jadeite jade (red line, peaks at 1175, 1075, 1051, 957, 855, 745, 666, 589, 534, 476, and 435 cm–1) and hydrogrossular garnet (blue line, peaks at 954, 866, 843, 616, 560, 488, and 458 cm–1).

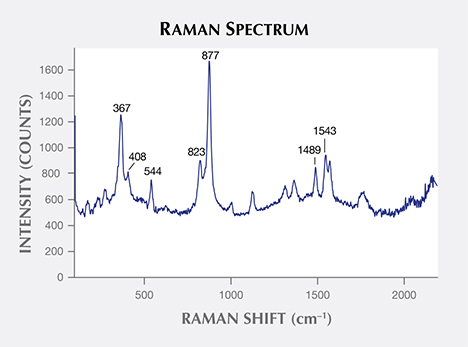

Raman confirms the bangle is hydrogrossular garnet.
Figure 4. Raman analysis of one of the client’s bangles, using a near-infrared wavelength of 785 nm, confirms its hydrogrossular garnet identity.

Larry Tai-An Lai operates the Lai Tai-An Gem Laboratory in Taipei, Taiwan.
